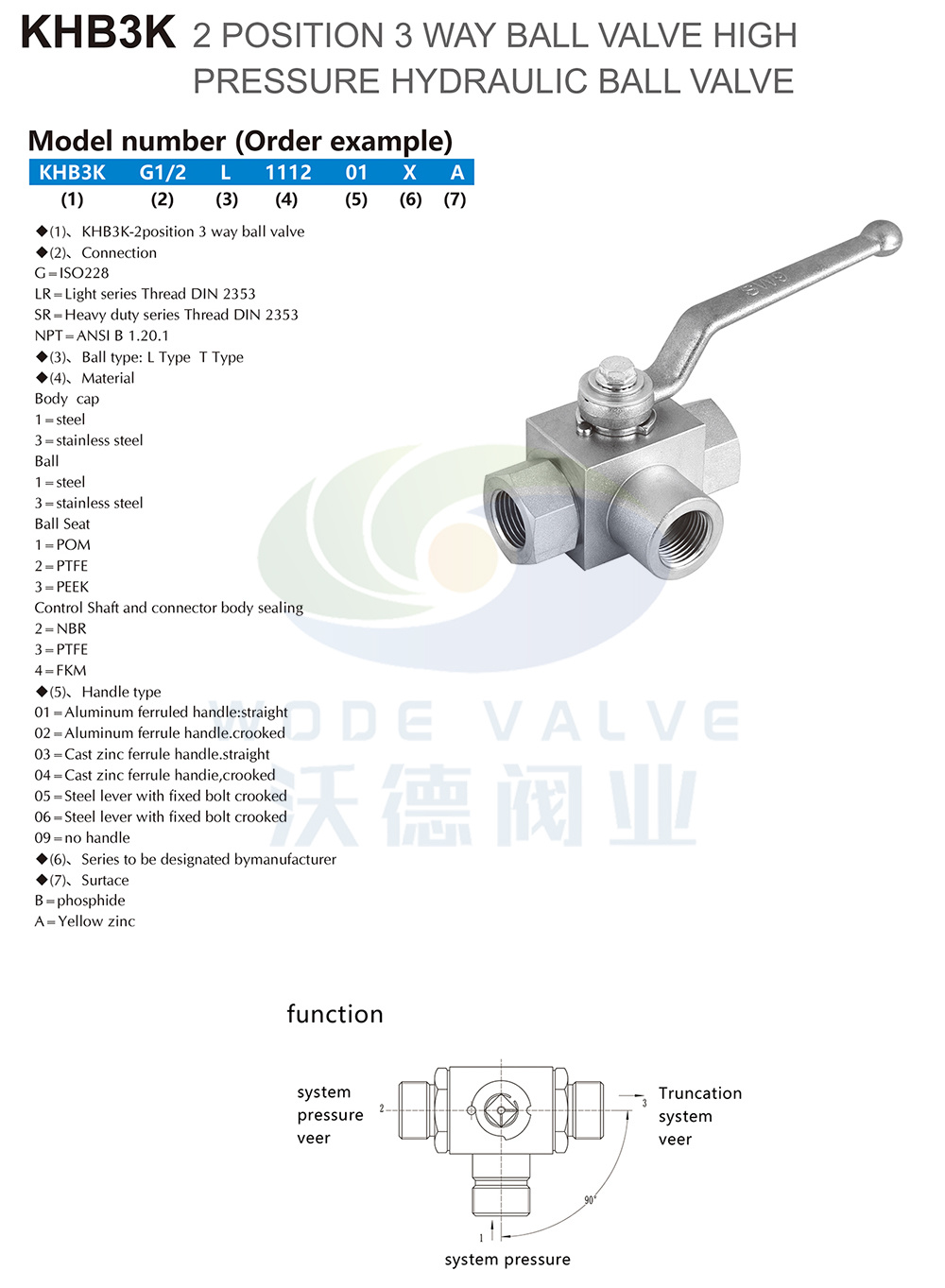

The KHB3K 2 Position 3 Way Ball Valve is a specific type of valve used for controlling the flow of fluids in various industrial applications. It is designed with a 2-position, 3-way configuration, allowing for versatile control over fluid pathways.

This ball valve consists of a spherical ball with three ports, which can be rotated to different positions to control the flow of media. The two positions refer to the different states in which the valve can be set, typically open or closed. The three-way configuration means that the valve has three ports: one inlet and two outlets or vice versa.

The primary function of the KHB3K 2 Position 3 Way Ball Valve is to direct and regulate the flow of fluids. By rotating the ball, the valve can be set to connect the inlet port with either one of the outlet ports, or it can be positioned to block all connections. This allows for diverting or mixing the flow of media, depending on the specific system requirements.

The valve is commonly used in applications where there is a need to control the direction or distribution of fluids. For example, it can be utilized in hydraulic systems to switch between different hydraulic circuits, control the flow direction, or adjust the flow rate. It also finds applications in pneumatic systems, fuel systems, water treatment plants, and other industries requiring precise control over fluid flow.

In summary, the KHB3K 2 Position 3 Way Ball Valve is a valve with a specific configuration that enables control over fluid pathways. Its main purpose is to direct, divert, or mix the flow of fluids in industrial systems, providing flexibility and control in various applications.
